Molecular Vibrations & Visualization

orca-4.2.0.pbs

After performing a vibrational frequency calculation in ORCA (using ! NumFreq or ! Freq), we obtain the normal modes and frequencies of the molecule. For any non-linear molecule with N atoms, there are 3N - 6 vibrational degrees of freedom (modes 0 to 5 correspond to overall translation and rotation, having near-zero frequencies).

To inspect which atoms are moving during each vibration, ORCA includes a dedicated built-in utility: orca_pltvib.

How orca_pltvib works:
The orca_pltvib tool reads the Hessian file (*.hess) generated by ORCA along with the vibrational normal mode number, and produces a multi-frame Cartesian coordinates file (*.xyz) with a 20-frame sinusoidal animation cycle.

Visualizing with wxMacMolPlt:
Once the animated *.xyz file is generated, you can open it directly in wxMacMolPlt (or Chemcraft / Avogadro). Use the playback controls at the bottom of wxMacMolPlt to play the animation, adjust the loop speed, and inspect the displacement vectors.

Key commands and workflow:

grep -A 40 'IR SPECTRUM' isoprene.out
Displays the vibrational modes list and frequencies (cm⁻¹).

orca_pltvib file.hess <mode_number>
Built-in ORCA tool that extracts the normal mode and creates the animated .xyz file.

orca_pltvib file.hess all
Generates animated .xyz files for every vibrational mode simultaneously.

wxmacmolplt file.hess.v017.xyz
Launches the wxMacMolPlt viewer to animate and inspect the vibrational motion.

[emma@pople]$ vi isoprene_vib.inp

# ORCA Vibrational Frequency Calculation
! RKS PBE TZVP TightSCF PAL8
! Opt NumFreq

# Coordinates of Isoprene (13 atoms -> 33 vibrational modes)
* xyz 0 1
C -0.2638 -0.1109 0.0000
C -1.3682 -0.8722 0.0000
C -2.6947 -0.2665 0.0000
C -3.8458 -0.9410 0.0000
C -1.2885 -2.3550 0.0000
H -0.3045 0.9856 0.0000
H 0.7449 -0.5425 0.0000
H -2.7008 0.8389 0.0000
H -3.8994 -2.0373 0.0000
H -4.8166 -0.4284 0.0000
H -0.2275 -2.7055 0.0000
H -1.7967 -2.7689 0.9064
H -1.7967 -2.7689 -0.9064
*

[emma@pople]$ /path/to/orca isoprene_vib.inp > isoprene_vib.out

[emma@pople]$ grep -A 15 'IR SPECTRUM' isoprene_vib.out
-----------------------------------------------------
Mode freq (cm**-1) T**2 TX TY TZ
-----------------------------------------------------
6: 151.83 0.001
7: 298.42 0.042
...

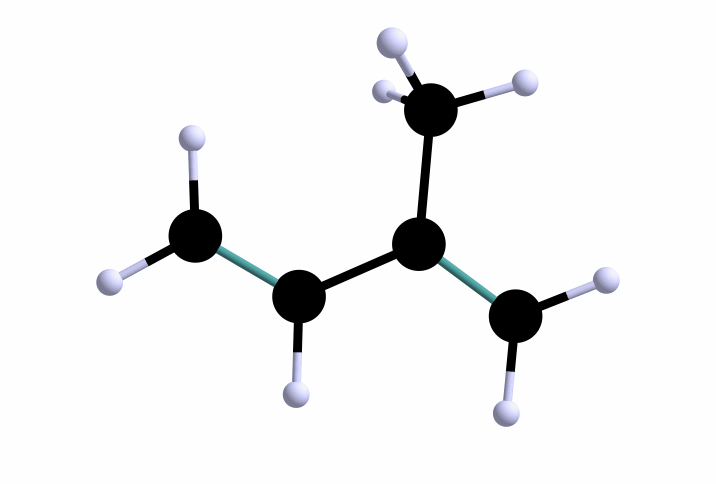

17: 935.31 1.482

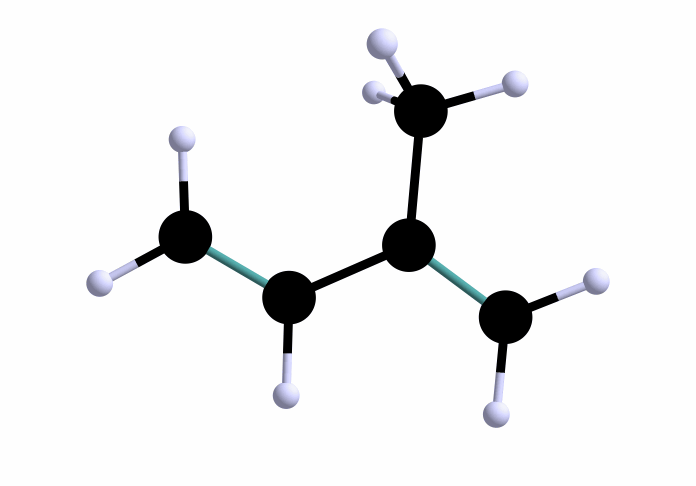

19: 1029.15 2.110

[emma@pople]$ orca_pltvib isoprene_vib.hess 17
This file is being recognized as a valid Hessian file
Will plot 1 vibration: mode 17 (935.31 cm**-1)
Creating: isoprene_vib.hess.v017.xyz (20 frames)

[emma@pople]$ wxmacmolplt isoprene_vib.hess.v017.xyz
